Product Description

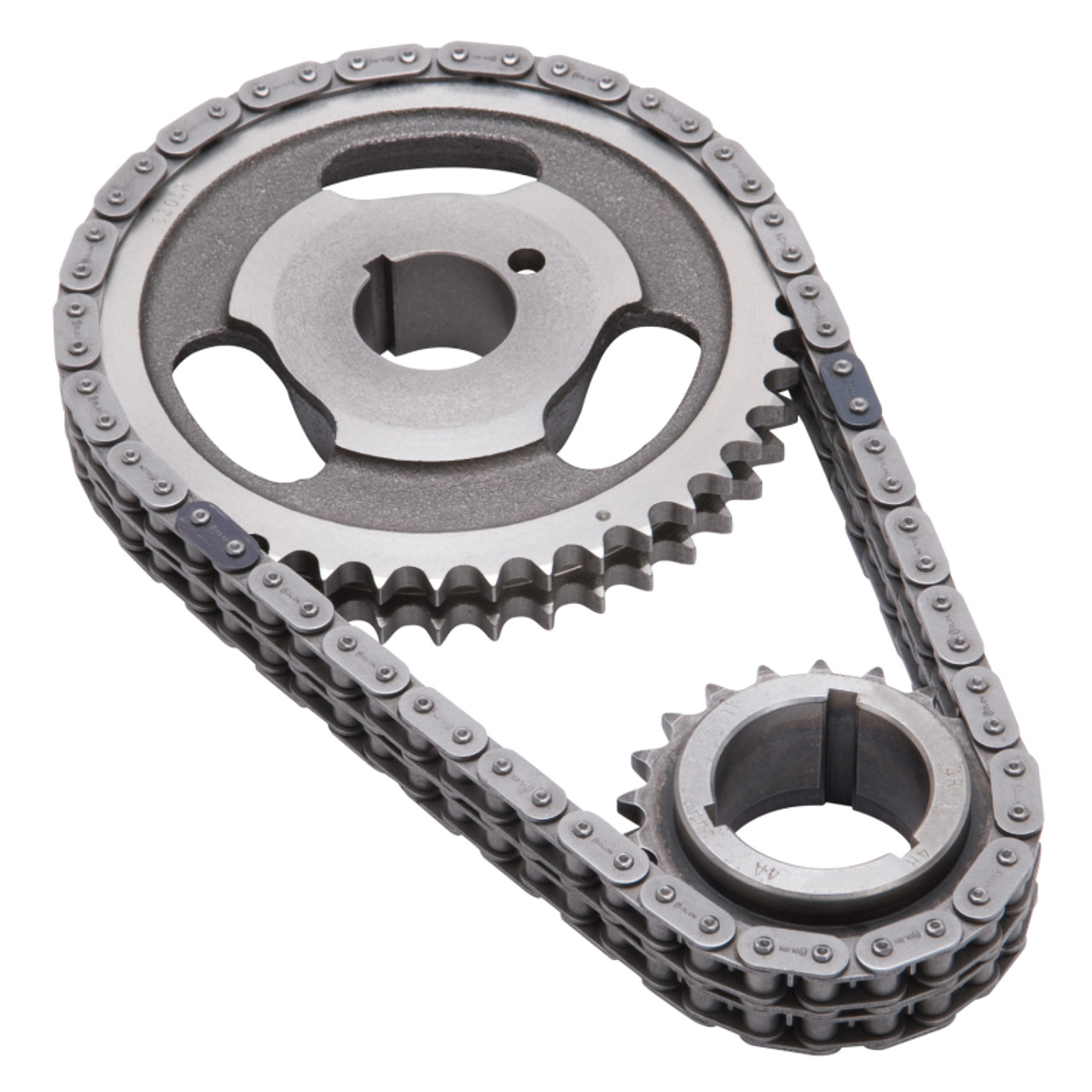

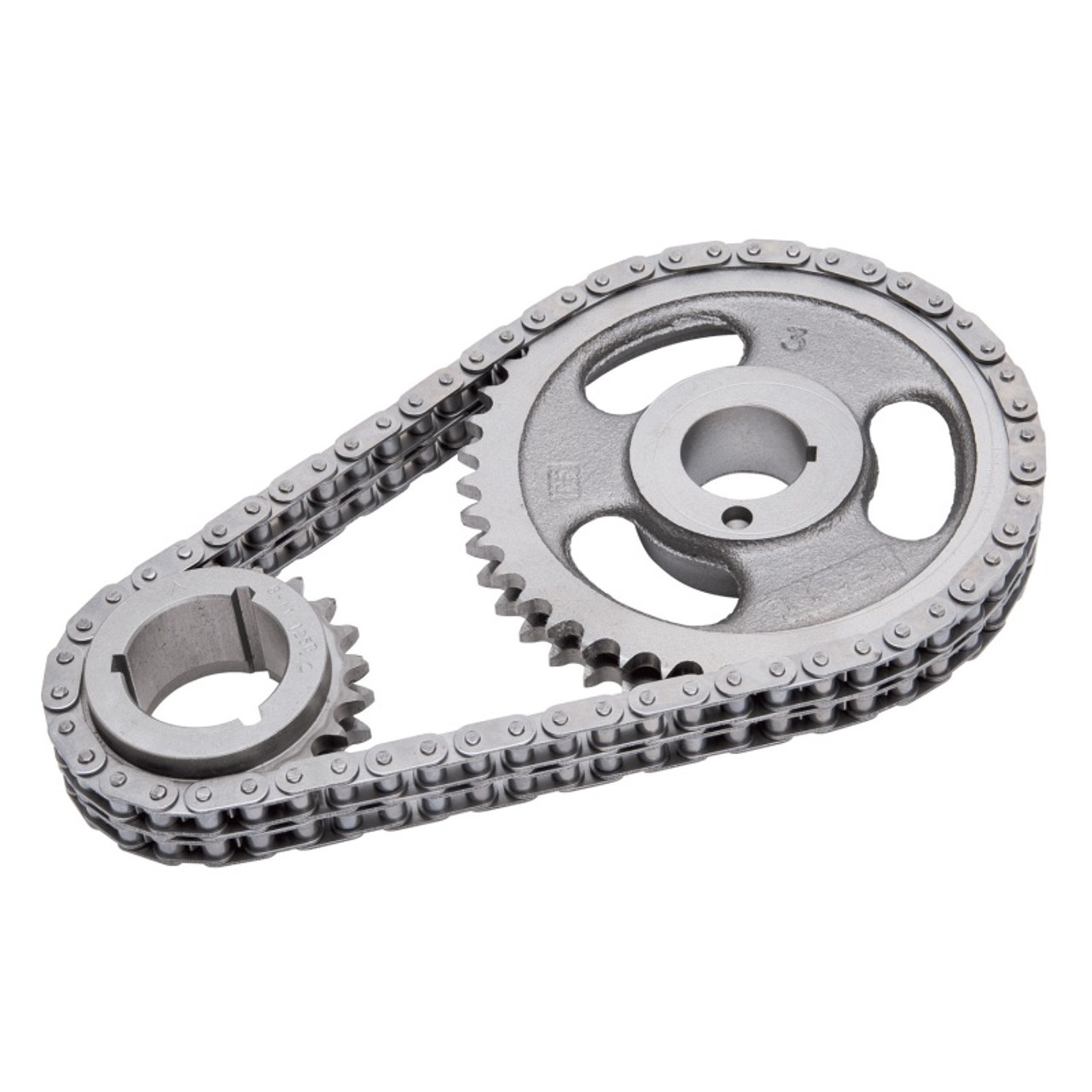

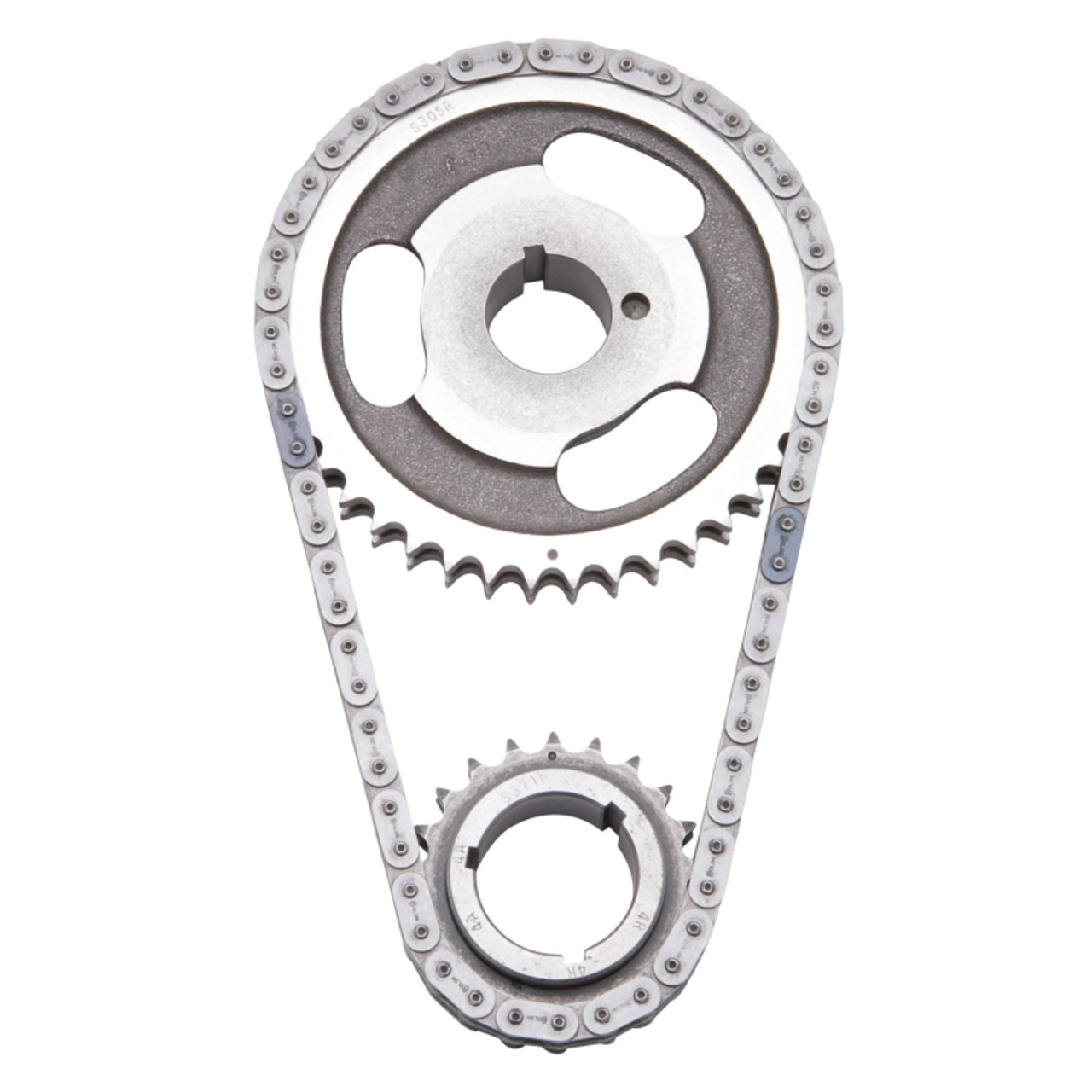

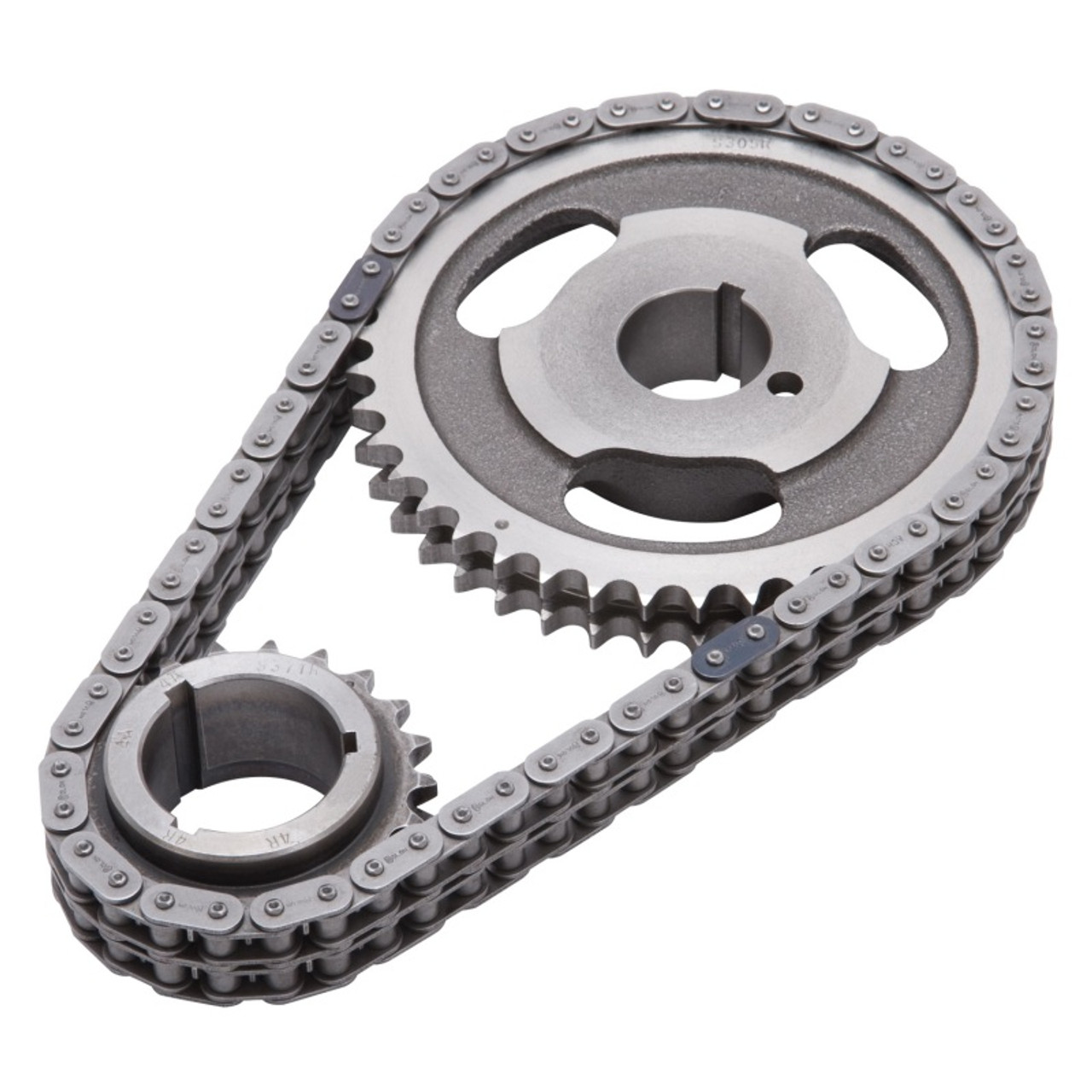

Edelbrock part #7812 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to breakWarranty
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1959-1978 | Pontiac | Bonneville | Base |
| 1976-1978 | Pontiac | Bonneville | Brougham |
| 1959-1962 | Pontiac | Bonneville | Custom |
| 1959-1970,1978 | Pontiac | Bonneville | Safari |
| 1964-1967 | Pontiac | Catalina | 2+2 |
| 1959-1978 | Pontiac | Catalina | Base |
| 1971-1972 | Pontiac | Catalina | Brougham |
| 1959-1978 | Pontiac | Catalina | Safari |
| 1962-1970 | Pontiac | Catalina | Ventura |
| 1967-1970 | Pontiac | Executive | Base |
| 1967-1970 | Pontiac | Executive | Safari |
| 1968-1969 | Pontiac | Firebird | 350 |
| 1969 | Pontiac | Firebird | 350 HO |
| 1968-1969 | Pontiac | Firebird | 400 |
| 1968-1977 | Pontiac | Firebird | Base |
| 1970-1977 | Pontiac | Firebird | Esprit |
| 1970-1979 | Pontiac | Firebird | Formula |
| 1968 | Pontiac | Firebird | HO |
| 1969-1979 | Pontiac | Firebird | Trans Am |
| 1973-1975 | Pontiac | Grand Am | Base |
| 1975-1977 | Pontiac | Grand LeMans | Base |
| 1975,1977 | Pontiac | Grand LeMans | Safari |
| 1962-1974,1976-1977 | Pontiac | Grand Prix | Base |
| 1975,1977 | Pontiac | Grand Prix | LJ |
| 1975-1977 | Pontiac | Grand Prix | SJ |
| 1971-1978 | Pontiac | Grand Safari | Base |
| 1971-1974 | Pontiac | Grandville | Base |
| 1975 | Pontiac | Grandville | Brougham |
| 1964-1966,1968-1973 | Pontiac | GTO | Base |
| 1970-1971 | Pontiac | GTO | The Judge |
| 1968-1977 | Pontiac | LeMans | Base |
| 1972-1974 | Pontiac | LeMans | Luxury |
| 1969-1970,1973-1975,1977 | Pontiac | LeMans | Safari |
| 1974 | Pontiac | LeMans | Safari Luxury |
| 1970-1977 | Pontiac | LeMans | Sport |
| 1971 | Pontiac | LeMans | T37 |
| 1959-1966 | Pontiac | Star Chief | Base |
| 1966 | Pontiac | Star Chief | Executive |
| 1961,1968-1970 | Pontiac | Tempest | Base |
| 1968-1969 | Pontiac | Tempest | Custom |
| 1970 | Pontiac | Tempest | GT |
| 1961 | Pontiac | Tempest | LeMans |
| 1961,1968-1969 | Pontiac | Tempest | Safari |
| 1960-1961,1972-1975 | Pontiac | Ventura | Base |
| 1973-1975 | Pontiac | Ventura | Custom |
| 1974 | Pontiac | Ventura | GTO |
| 1975 | Pontiac | Ventura | S |
| 1975 | Pontiac | Ventura | SJ |
Product Videos
Custom Field
Category Engine Components>Timing Chains
MPN 7812
