Product Description

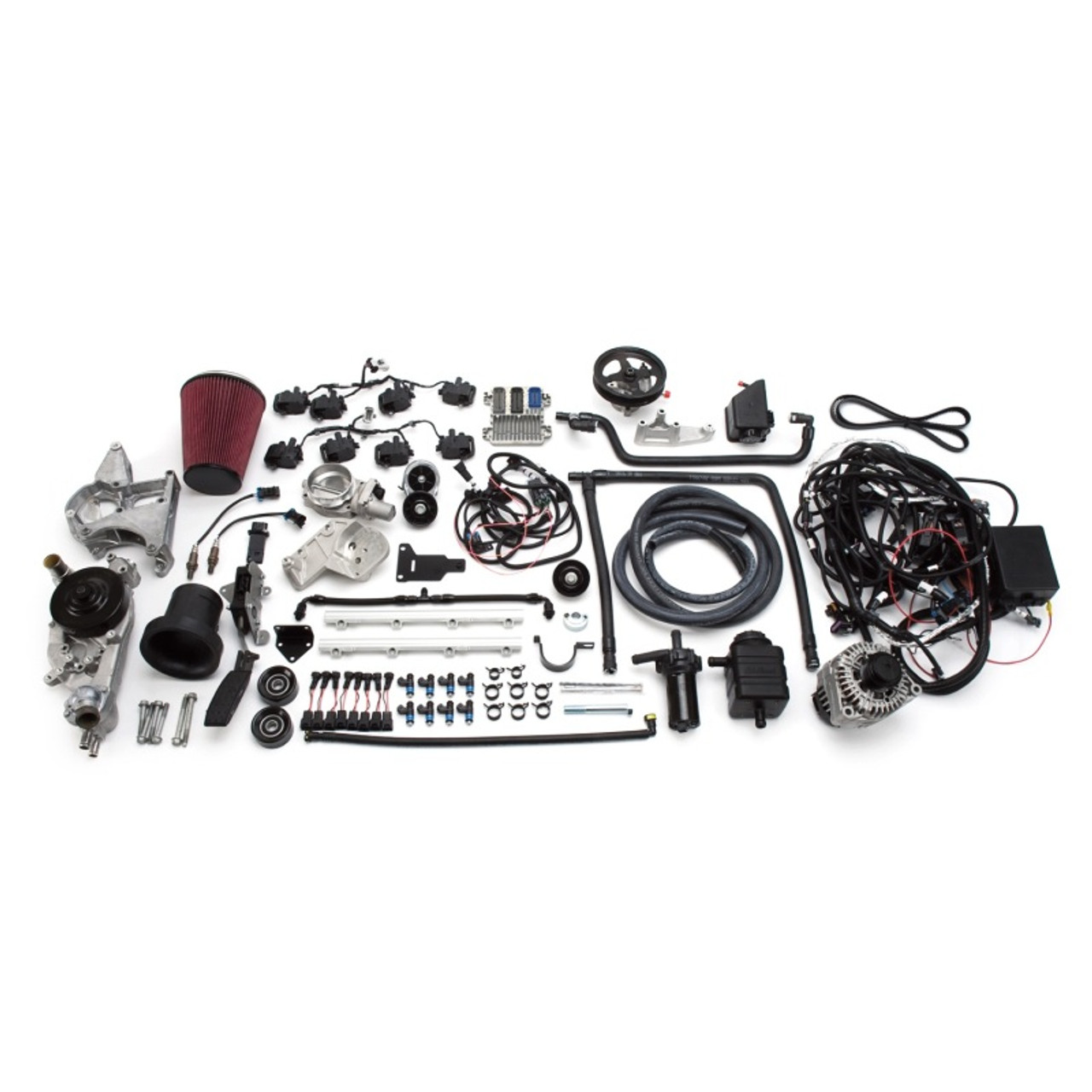

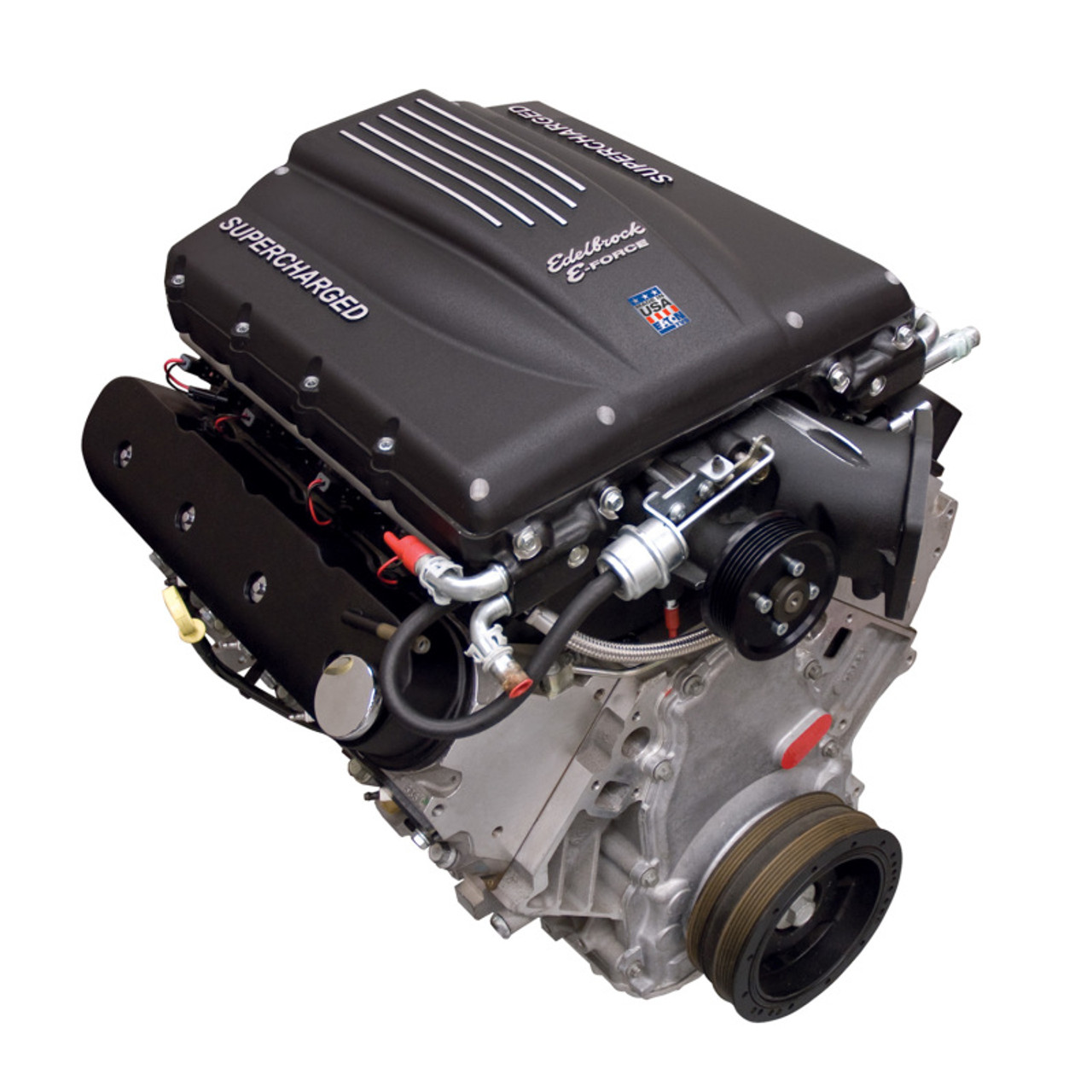

Edelbrock Supercharged LS 416 crate engine part #46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.Sitting on top is an Edelbrock E-Force supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Bore: 4.065"- Stroke: 4.0"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileageInstallation Instructions
Installation Instructions
Installation Instructions
Product Videos
Custom Field
Category Engine Components>Engines
MPN 46760
