Product Description
Forced pin oilers from the oil ring; Pin Fitted; Moly Coated Skirts; 3D Pockets; Pins, Lock's & Support Rails (if required) included

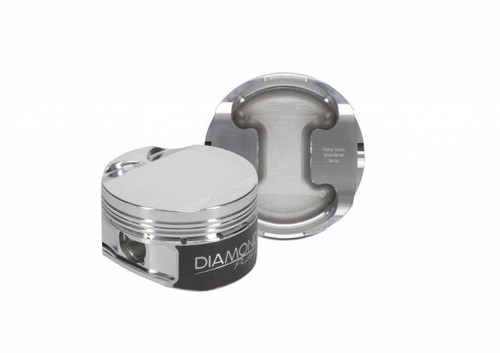

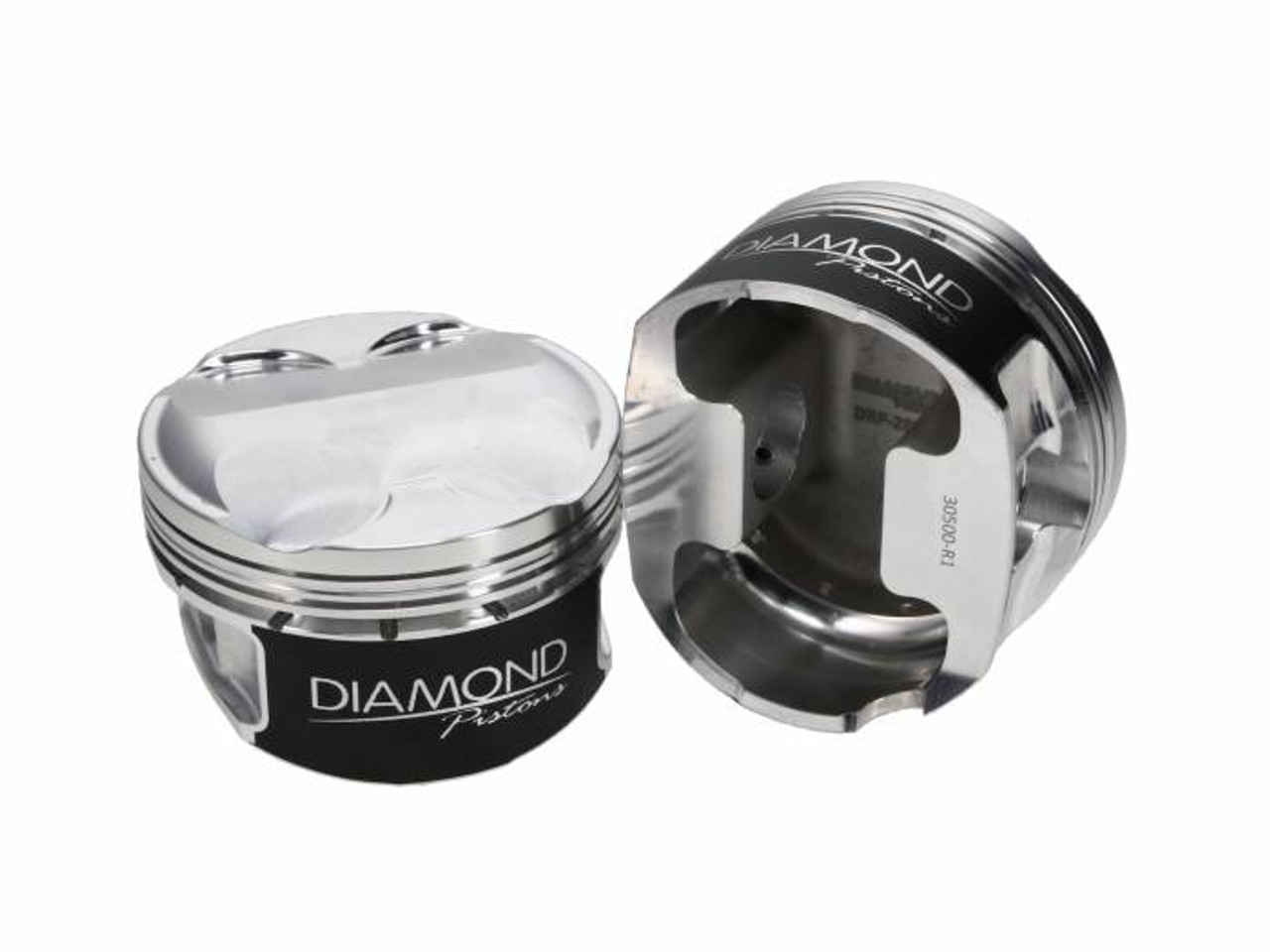

Piston Features:
- Designed to be used with Gen 1-3 coyote cylinder heads
- 3D milling on piston crowns for ready to install finish
- Offset pins for quiet operation
- Moly skirt coating for friction loss and skirt wear protection
- Top ring down dimension: .230"
- Ratios figured for .007" below deck w/ .040 head gasket @ 8.930 Deck
- Premium ring package 1.2mm x 1.5mm x 3.0mm ring package included
- Premium 8620 .180W wrist pins chamfered for roundwire locks included
- Over-sized valve pockets - for larger than stock valve sizes
- Valve pocket depth: 0.100" intake and 0.100" exhaust
- Made from 2618 alloy - Rated for 1200HP (1500hp rating with H13 pin upgrade)
