Product Description

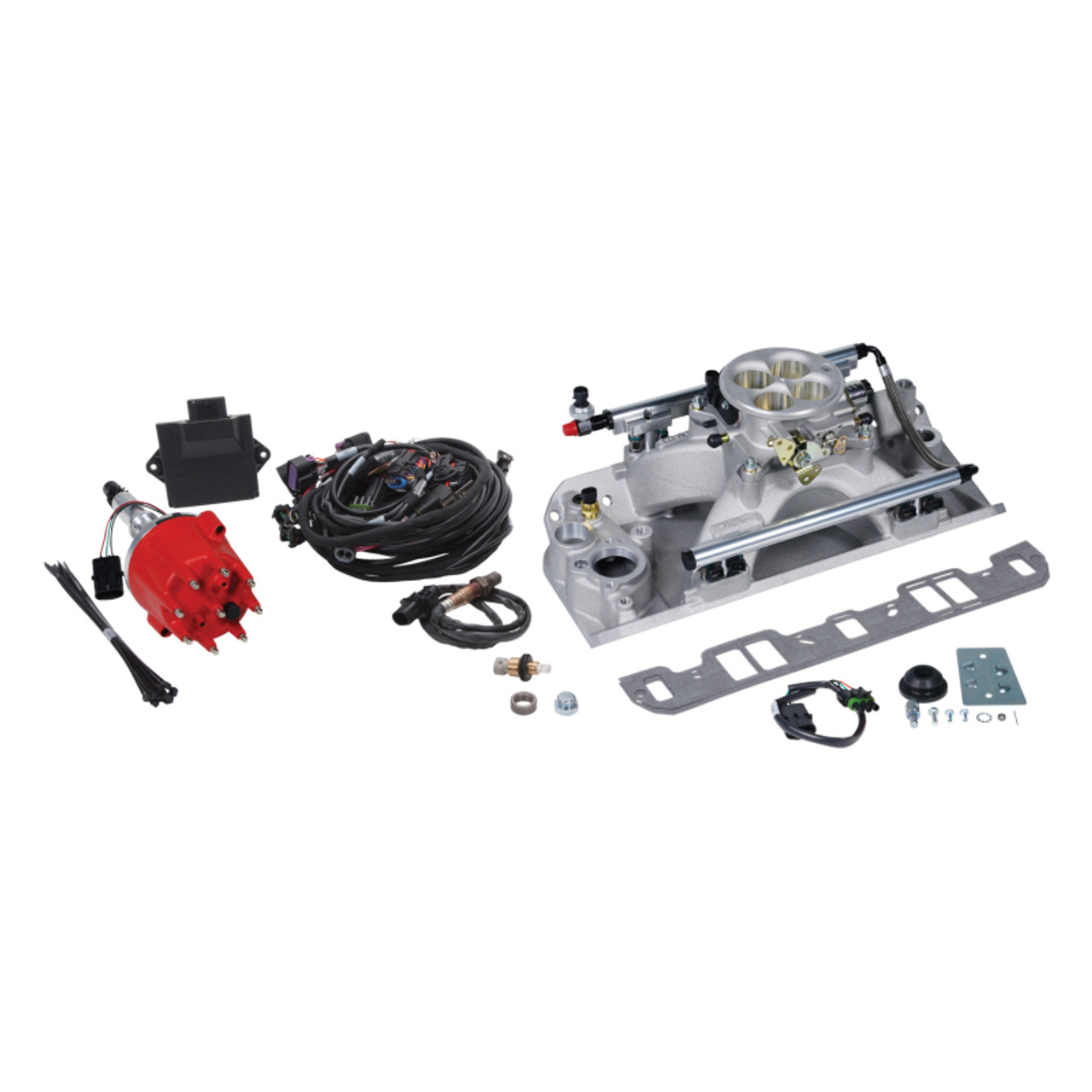

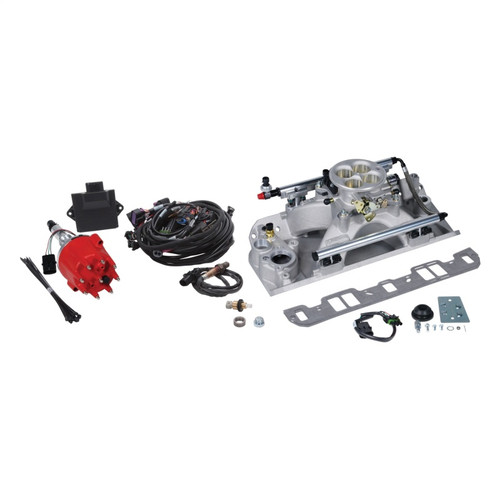

The Edelbrock Pro-Flo 4 EFI Kit #356500 W/O Tablet for 1970-1991 AMC 304, 360, 390, 401 CID engines is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor Jr.-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with distributor, wire harnesses, ECU and Android-based tablet with E-Tuner Calibration app pre-installed. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. This kit uses 35 lb/hr injectors and is rated for 550 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. No laptop tuning is required.This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970 | American Motors | Ambassador | Base |
| 1971-1974 | American Motors | Ambassador | Brougham |
| 1970-1971 | American Motors | Ambassador | DPL |
| 1970-1972 | American Motors | Ambassador | SST |
| 1970,1978-1979 | American Motors | AMX | Base |
| 1978-1979 | American Motors | Concord | Base |
| 1979 | American Motors | Concord | DL |
| 1979 | American Motors | Concord | Limited |
| 1972-1976 | American Motors | Gremlin | Base |
| 1976 | American Motors | Gremlin | Custom |
| 1977 | American Motors | Hornet | AMX |
| 1970-1971,1973-1977 | American Motors | Hornet | Base |
| 1971 | American Motors | Hornet | SC/360 |
| 1971-1977 | American Motors | Hornet | Sportabout |
| 1970-1972 | American Motors | Hornet | SST |
| 1971-1974 | American Motors | Javelin | AMX |
| 1970-1974 | American Motors | Javelin | Base |
| 1970-1972 | American Motors | Javelin | SST |
| 1970 | American Motors | Javelin | SST Mark Donohue |
| 1970 | American Motors | Javelin | SST Trans Am |
| 1971-1978 | American Motors | Matador | Base |
| 1974 | American Motors | Matador | Brougham |
| 1974 | American Motors | Matador | X |
| 1978 | American Motors | Pacer | Base |
| 1979 | American Motors | Pacer | DL |
| 1979 | American Motors | Pacer | Limited |
| 1970 | American Motors | Rebel | Base |
| 1970 | American Motors | Rebel | SST |
| 1970 | American Motors | Rebel | The Machine |
| 1979 | American Motors | Spirit | Base |
