Product Description
These are the most aggressive of the n/a camshaft offerings. 4.10 or steeper gears are required as well as a very high stall converter if an auto trans is used.

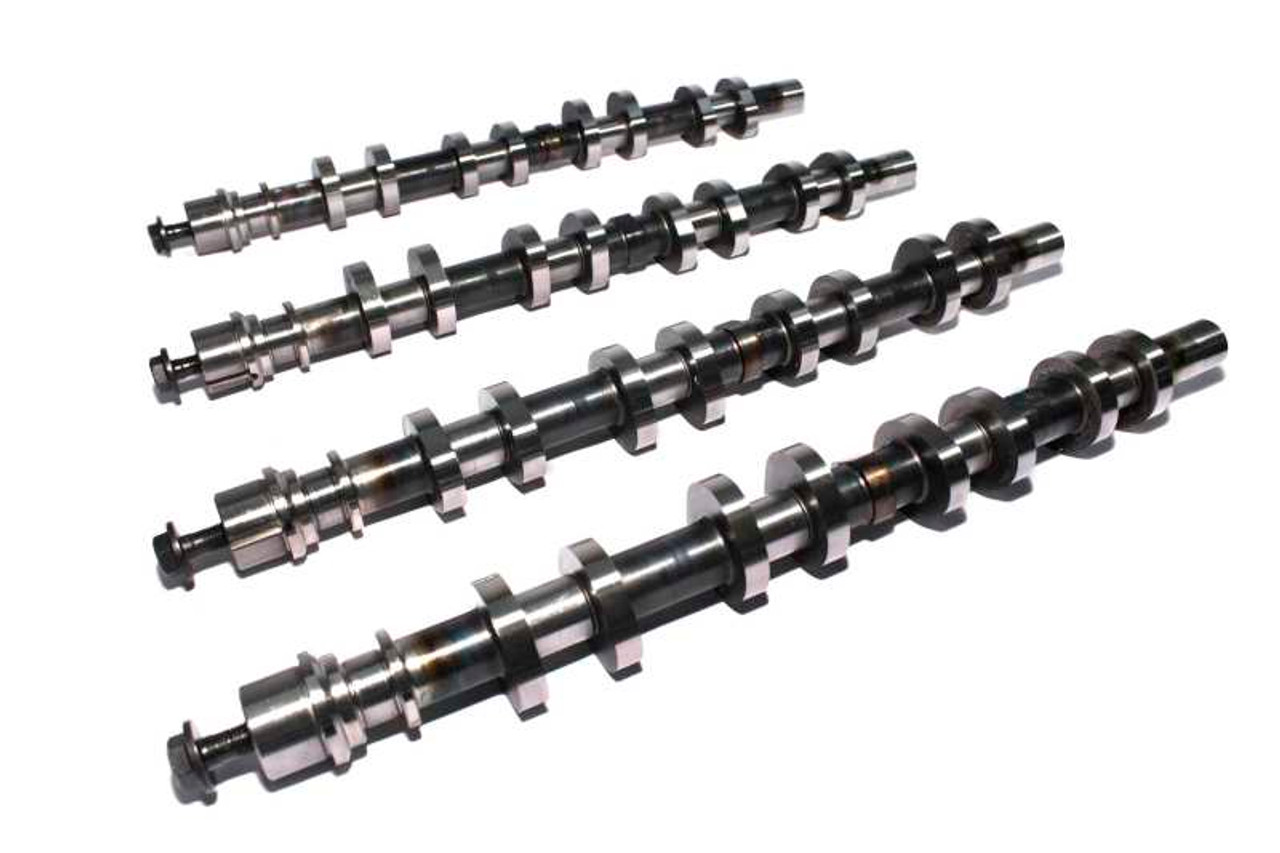

Xtreme XE-R 242/240 Hydraulic Roller Finger Follower Cams for Ford 4.6/5.4/5.8L Modular. Race or limited street use. Cams require a larger throttle body, mass air, injectors, exhaust upgrades, 3000+ stall. Very rough idle. Requires custom tuning.
| RPM Operating Range | 2,200-6,500 |
|---|---|
| Cam Type | Hydraulic Roller Swinging Follower |
| Camshaft Series | Xtreme XE-R |
| Camshaft Gear Attachment | 1-Bolt |
| Usage | Street/Performance |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Advertised Intake Duration | 277 |
| Advertised Exhaust Duration | 275 |
| Intake Duration at .050 Inch Lift | 242 |
| Exhaust Duration at .050 Inch Lift | 240 |
| Intake Valve Lift | 0.475 |
| Exhaust Valve Lift | 0.45 |
| Lobe Lift Intake | 0 |
| Lobe Lift Exhaust | 0 |
| Lobe Separation | 114 |
| Intake Centerline | 112 |
